3589790

Kinetic investigation on the ring-expansion polymerization of o-phthalaldehyde

Date
August 23, 2021

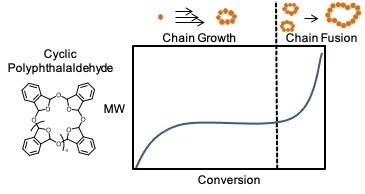

Poly(phthalaldehyde) is a metastable polymer that has been shown to rapidly depolymerize from the solid state back into its constituent monomer, a consequence of its low ceiling temperature. This depolymerization upon triggering makes it well suited as a chemically recyclable polymer, and sacrificial materials in semiconductor or other manufacturing. Although interest in phthalaldehyde-based polymers has increased in the past several years, there has not been a thorough investigation of the polymerization kinetics since its discovery in 1967. In this work, a continuous flow reactor was utilized to probe the kinetics of this rapid, cationic polymerization in dichloromethane using boron trifluoride diethyl etherate as the Lewis acid catalyst. Under proper catalyst loadings, polymer nominal molecular weights exceed 250 kDa in 10 seconds of reaction time at -78 °C. Molecular weight and time–conversion data supports two polymerization regimes, which has not been observed before in batch polymerizations of this polymer. The initial chain growth regime involves the creation of many polymer chains of moderate molecular weight. At conversions greater than 70%, a kinetic transition is observed as the polymer chains fuse together at higher rates, causing the observed molecular weight to roughly double in the last 20% conversion. These findings provide fundamental kinetic and molecular weight understanding that enable greater synthetic control over depolymerizable poly(aldehydes).

Speaker


Related Products

Thumbnail for Synthesis of rapidly depolymerizable phthalaldehyde-based polymers and their application toward dry-develop lithography
Synthesis of rapidly depolymerizable phthalaldehyde-based polymers and their application toward dry-develop lithography
Poly(phthalaldehyde) and its copolymers are metastable polymers that have been shown to rapidly depolymerize from the solid state back into their constituent monomers, a consequence of their low ceiling temperature…
Thumbnail for Cyclic carbonate-based polymer electrolytes for Li-ion batteries
Cyclic carbonate-based polymer electrolytes for Li-ion batteries
Solid polymer electrolytes (SPEs) have been proposed to address several issues in Li-ion batteries, including decreased flammability and lithium dendrite growth, and reduced concentration gradients by immobilizing anions to the polymer matrix…
Thumbnail for Improving the accuracy of ceiling temperature measurements: Accounting for concentration in entropy calculations and other best practices
Improving the accuracy of ceiling temperature measurements: Accounting for concentration in entropy calculations and other best practices
The investigation of low ceiling temperature (Tc) monomers is an active area of research in the field of polymer science…
Thumbnail for Scaling-up the cationic polymerization of poly(phthalaldehyde) via continuous flow synthesis
Scaling-up the cationic polymerization of poly(phthalaldehyde) via continuous flow synthesis
Aldehydes as a class of monomers typically have low ceiling temperatures (TC) for chain growth polymerization, -50 to 80C, due to their comparatively low enthalpies of polymerization…
